脫蠟燒結設備系列之(Dewaxing and sintering equipment series)
臥式預燒脫蠟(膠)爐

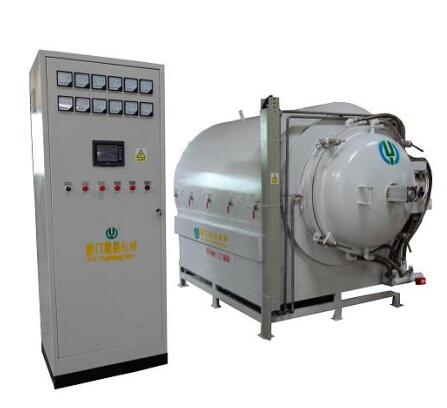

Horizontal burn-in dewaxing (GUM) furnace
一、主要性能說明(The main performance specification)
臥式預燒脫蠟（膠）爐是硬質合金異型產品加工過程燒結前預燒脫蠟脫膠專用設備。保溫加熱系統采用日本連體技術及新型混合纖維保溫材料,可耐溫1700℃,使保溫效果更好；溫控系統采用PLC,操作系統采用觸摸屏，更加簡單、方便,控溫*,可自動調節0-100%輸出,更節能省電.冷卻系統采用大功率冷卻風機,風量大且集中,冷卻速度快,效率高。
Horizontal burn-in dewaxing (GUM) furnaceis hardalloyprocessing special-shapedproducts beforesinteringburn-in dewaxing degumming andspecialequipment.Heating system usingJapanese conjoined technology and new hybrid fiber insulation materials, hightemperature of 1700 ℃, the insulation effect is better;temperature control system uses PLC, the operating system adopts touch screen, more simple, convenient,accurate temperature control, can automatically adjust the output of the 0-100%, more energy saving. The cooling system adopts high-power cooling fan, air volumeand concentrated, fast cooling speed, high efficiency.
二、 主要技術參數(Main technical parameters)
產品代號Product code:YC5022
工作溫度working temperature :950 ℃
爐膽尺寸Thefurnace dimensions:φ850*1700mm
爐膽材質Thefurnace material:310S
發熱體材質The heating body material:耐高溫抗氧化加熱Hightemperature
oxidation heating wire
外形尺寸outline dimension:2650*2100*2400mm
有效空間mm The effective space mm:550*550*1700
額定電流rated current :270A
功率power:180KW
溫控系統temperature controlling system :
額定電壓rated voltage :PLC


可依客戶需求設計特定
規格型號(Customer designed specific specifications)
